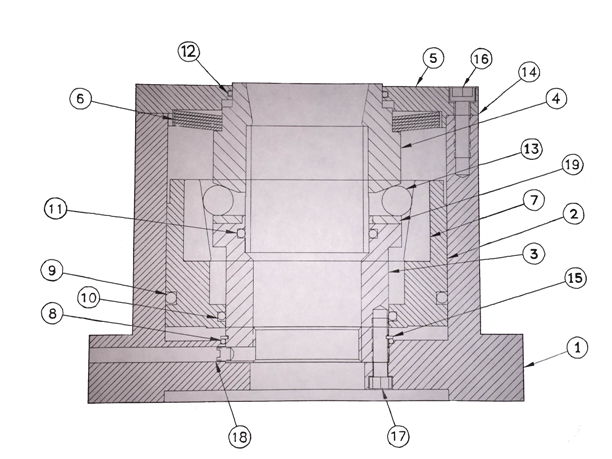

MODEL 20001 COLLET CLOSER PARTS LIST
| |
 |
|
| |
|
|
| |
| ITEM |
QTY |
PART NUMBER |
PART NAME |
| 1 |
1 |
20001-10501 |
BODY |
| 2 |
1 |
20001-10201 |
PISTON |
| 3 |
1 |
20001-10601 |
BALL BASE |
| 4 |
1 |
20001-17501 |
SLEEVE AND GUIDE |
| 5 |
1 |
20001-10301 |
CAP |
| 6 |
6 |
20001-10701 |
BELLEVILLE SPRING |
| 7 |
1 |
11501 |
PISTON INSERT |
| 8 |
1 |
031 |
O-RING |
| 9 |
1 |
234 |
O-RING |
| 10 |
1 |
134 |
O-RING |
| 11 |
1 |
127 |
O-RING |
| 12 |
1 |
031 |
O-RING |
| 13 |
15 |
3/8 INCH |
BALLS |
| 14 |
1 |
11601 |
GASKET |
| 15 |
1 |
187 |
SNAP RING |
| 16 |
6 |
10-32 x .750 SHC |
SCREW 4 CAP |
| 17 |
3 |
8-32 x .50 SHC |
SCREW 4 BALL BASE |
| 18 |
3 |
8-32 x .25 SSS |
ADJUSTING SCREW |
| 19 |
1 |
11401 |
BALL RING |
| |
|
50002 |
O-RING KIT MODEL 201 |
|
|
